Column in Construction – Types, Features, Applications & Advantages

A column in construction is a vertical structural element that primarily transfers loads from the roof, slab, or beam down to the foundation. Columns are essential in maintaining the stability and strength of any building, whether residential, commercial, or industrial. Without proper columns, structures may experience cracks, tilting, or even collapse under load.

Columns are designed to bear axial loads, bending moments, or combined forces, depending on the building’s requirements. They can vary in shape, size, and material, each type suited for specific structural and aesthetic needs. Understanding the different types of columns is crucial for engineers, architects, and construction professionals to ensure safety, durability, and cost-effectiveness.

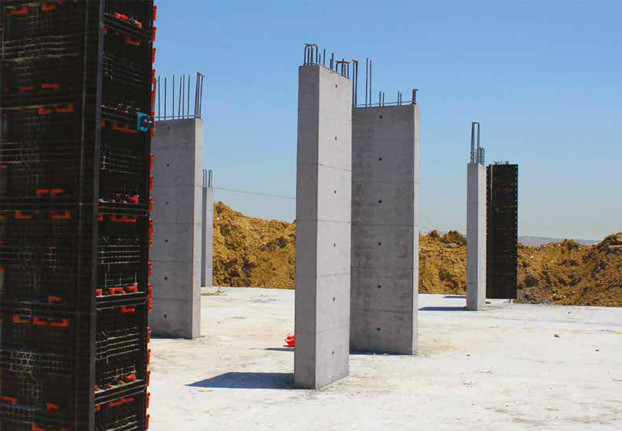

1. Rectangular Column

A rectangular column is a vertical structural element with a rectangular cross-section, commonly used in residential and commercial buildings. It is easy to construct and reinforce, making it cost-effective. Rectangular columns efficiently transfer loads from beams, slabs, or roofs to the foundation. They are ideal for small to medium-sized structures and can be easily integrated with walls, beams, and slabs without complex formwork or specialized construction techniques.

Features

Rectangular columns are the most common type used in residential and commercial buildings. They are easy to construct, cost-effective, and simple to reinforce. Their rectangular shape allows straightforward formwork and placement of reinforcement bars.

Applications

• Residential and office buildings
• Supporting beams and slabs
• Suitable for small to medium load structures

2. Square Column

Square columns have equal sides and symmetrical shape, which simplifies reinforcement and load distribution. They are widely used in multi-storey buildings due to their uniform strength in both directions. The design allows easy connection with beams at intersections and provides stability to structural grids. Square columns are economical, simple to construct, and suitable for areas where aesthetics and functionality must be balanced without compromising structural integrity.

Features

Square columns have equal sides, making them symmetrical and easy to design. They provide uniform strength in both directions and are simple to reinforce with steel bars.

Applications

• Used in multi-storey buildings
• Intersection points of beams
• Structural grid points where symmetry is needed

3. Circular Column

Circular columns feature a round cross-section, offering better resistance to lateral loads, wind, and seismic forces compared to rectangular shapes. They are often used in bridges, parks, high-rise buildings, and decorative architectural elements. Circular columns are aesthetically pleasing and can evenly distribute loads, reducing stress concentrations. They are ideal for exposed columns where both structural efficiency and visual appeal are important.

Features

Circular columns are aesthetically appealing and can resist wind and seismic forces better than rectangular shapes. They offer a smooth finish and are commonly used in exposed architectural elements.

Applications

• Bridges and flyovers
• Parks and decorative structures
• High-rise buildings for better load distribution

4. L-Shaped Column

L-shaped columns are corner columns with an L-shaped cross-section, designed to carry loads from two perpendicular directions. They are often used at building corners or where beams intersect at right angles. The shape allows proper placement of reinforcement to handle combined stresses and moments. L-shaped columns are common in multi-storey buildings, providing stability while efficiently transferring loads to the foundation.

Features

L-shaped columns are corner columns, designed to handle loads coming from two perpendicular directions. They are often reinforced at the junction to handle combined stresses.

Applications

• Building corners
• Structural frames in complex layouts
• Multi-storey corner supports

5. T-Shaped Column

T-shaped columns combine vertical and horizontal sections, allowing them to support roof beams or other spanning elements. Their T-shaped design helps distribute loads from multiple directions efficiently. These columns are often found in industrial sheds, bridges, and buildings requiring cantilevered support. They provide strength, durability, and effective load transfer, making them suitable for structures with complex layouts or asymmetrical load requirements.

Features

T-shaped columns combine vertical and horizontal support in one element. They are designed to support roof beams or other structural members spanning in different directions.

Applications

• Industrial sheds and warehouses
• Bridge supports
• Areas with cantilevered beams

6. I-Shaped Column

I-shaped columns resemble the letter “I” and are mainly used in steel structures. They provide high bending resistance and are ideal for structures requiring long spans or heavy loads. The flanges resist bending moments, while the web handles shear forces. I-shaped columns are common in bridges, industrial buildings, and high-rise steel-framed structures where both strength and material efficiency are critical.

Features

I-shaped columns resemble the letter “I” and are mostly used in steel construction. They provide high bending resistance and can carry heavier loads efficiently.

Applications

• Steel-framed buildings
• Bridges and flyovers
• Industrial structures

7. Composite Column

Composite columns combine concrete and steel to leverage the compressive strength of concrete and tensile strength of steel. This combination allows the column to carry higher loads and resist buckling. They are commonly used in high-rise buildings, heavy industrial structures, and earthquake-resistant designs. Composite columns offer durability, strength, and ductility, making them ideal for modern construction where safety and efficiency are priorities.

Features

Composite columns combine steel and concrete, benefiting from the compressive strength of concrete and the tensile strength of steel. They are stronger and more ductile than regular concrete columns.

Applications

• High-rise buildings
• Heavy industrial buildings
• Earthquake-resistant structures

8. Fluted Column

Fluted columns are decorative columns with vertical grooves running along their length. While they can carry loads, they are often used for aesthetic purposes, inspired by classical architecture. Fluted columns are found in monuments, temples, luxury homes, and interiors where visual appeal is important. They combine structural functionality with elegance, enhancing both support and design aesthetics.

Features

Fluted columns are decorative columns with vertical grooves. They enhance the visual appeal of buildings and are often inspired by classical architecture.

Applications

• Monuments and temples

• Interiors of palaces or luxury homes
• Historical-style constructions

9. Cluster Column

Cluster columns consist of several smaller columns grouped together to form a single structural element. This design allows the column to support large loads while maintaining structural stability. Cluster columns are commonly used in auditoriums, large halls, and high-rise buildings. The grouped columns distribute stress efficiently, providing increased load-carrying capacity without requiring overly massive individual columns.

Features

Cluster columns consist of multiple small columns tied together, often used where large loads are expected. They increase stability and load-carrying capacity.

Applications

• Auditoriums and large halls
• High-rise buildings with heavy slabs
• Multi-storey complex structures

10. Pedestal Column

Pedestal columns are short, vertical columns that primarily act as a base to support taller columns, statues, or structural elements. They help transfer loads safely to the foundation and stabilize the superstructure. Commonly used in bridge piers, monuments, or medium-load construction, pedestal columns enhance both the structural integrity and aesthetic appeal of the supported element.

Features

Pedestal columns are short columns that act as a base support for taller columns or statues. They primarily distribute loads to the foundation.

Applications

• Bridge piers
• Pedestal for decorative or structural elements
• Supporting medium loads at base level

11. Hollow Column

Hollow columns have a cylindrical or rectangular shape with a hollow center, making them lighter than solid columns while retaining sufficient strength. They are widely used in industrial buildings, long-span structures, and multi-storey constructions where reducing material weight is advantageous. Hollow columns offer cost savings, ease of handling, and can be reinforced to meet structural requirements.

Features

Hollow columns are lightweight columns with a hollow center, which reduces material usage without significantly affecting load capacity. They are cost-effective and easy to transport.

Applications

• Industrial buildings
• Long-span structures
• Multi-storey lightweight constructions

12. Short Column

Short columns have a height less than three times their least lateral dimension, making them very stiff. They primarily fail by crushing rather than buckling under axial loads. Short columns are used in low-rise buildings, heavy load-bearing areas, and stiff frames. Their design ensures minimal deflection, providing strong vertical support for slabs, beams, and other structural elements.

Features

Short columns have a height less than three times their least lateral dimension. They generally fail by crushing rather than buckling and are very stiff.

Applications

• Low-rise residential buildings
• Stiff structural frames
• Heavily loaded but short structures

13. Long Column

Long columns are slender columns with a height greater than 12 times their least lateral dimension. They are prone to buckling under axial loads and require careful design and lateral support. Commonly used in multi-storey buildings, towers, and chimneys, long columns allow taller structures while maintaining stability. Proper reinforcement and bracing are essential to prevent structural failure.

Features

Long columns have a height greater than 12 times their least lateral dimension. They are slender and prone to buckling, requiring lateral support.

Applications

• Multi-storey buildings
• Transmission towers and chimneys
• High-rise residential or office towers

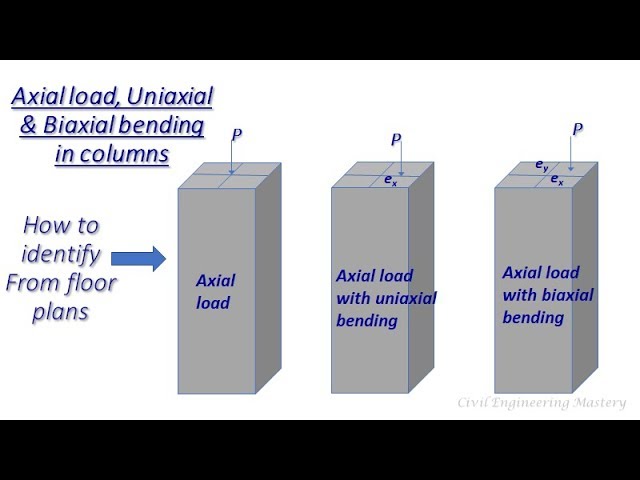

14. Axially Loaded Column

Axially loaded columns carry loads applied along their centerline, which minimizes bending stresses. They are ideal for simple vertical load transfer in residential, commercial, and industrial buildings. Proper reinforcement ensures that the axial load is efficiently transmitted to the foundation. These columns are simpler to design and are highly effective in evenly distributing vertical forces.

Features

Axially loaded columns bear vertical loads along the centerline, minimizing bending moments. Proper reinforcement ensures load is efficiently transferred to the foundation.

Applications

• Residential and commercial building vertical supports
• Columns in perfectly aligned load-bearing frames

15. Eccentrically Loaded Column

Eccentrically loaded columns experience loads applied off-center, causing both axial compression and bending moments. This requires careful reinforcement design to handle combined stresses. Eccentric columns are commonly used in buildings with projections, cantilever beams, or irregular layouts. Proper analysis ensures stability, preventing uneven deflection, cracking, or structural failure.

Features

Eccentrically loaded columns experience loads off-center, causing bending moments along with axial loads. Reinforcement design must account for both axial and bending stresses.

Applications

• Buildings with projections or cantilevers
• Irregular or complex layouts
• Columns subjected to uneven loads

16. Tied Column

Tied columns are reinforced with lateral ties to prevent buckling and enhance ductility. The lateral ties hold the longitudinal bars in place and improve stability under compressive loads. Tied columns are common in multi-storey reinforced concrete buildings and earthquake-resistant structures. They are economical, safe, and widely used in construction requiring strong vertical support.

Features

Tied columns are reinforced with lateral ties to prevent buckling and increase ductility. They are common in reinforced concrete frames.

Applications

• Multi-storey concrete buildings
• Earthquake-prone regions
• Heavily reinforced concrete structures

17. Spiral Column

Spiral columns include spiral steel reinforcement around longitudinal bars, providing excellent ductility and resistance to crushing. They are suitable for high-rise buildings, bridges, and earthquake-prone areas. Spiral columns absorb seismic energy effectively and prevent sudden failure, making them ideal for structures that require both strength and flexibility under dynamic loads.

Features

Spiral columns have spiral steel reinforcement around longitudinal bars. They provide excellent ductility, preventing sudden failure under high stress.

Applications

• High-rise earthquake-resistant buildings

• Bridges and piers
• Industrial structures with seismic concerns

18. Slender Column

Slender columns have a high slenderness ratio, making them susceptible to lateral buckling. They require lateral support, bracing, or reinforcement to maintain stability. Slender columns are used in towers, chimneys, and thin structural elements where space constraints exist but vertical load transfer is needed. Proper design ensures safety despite their thin and tall geometry.

Features

Slender columns have a high slenderness ratio, making them prone to lateral buckling. They require careful design and lateral bracing.

Applications

• Towers, chimneys, and poles
• Structures with height constraints
• Lightweight but tall vertical elements

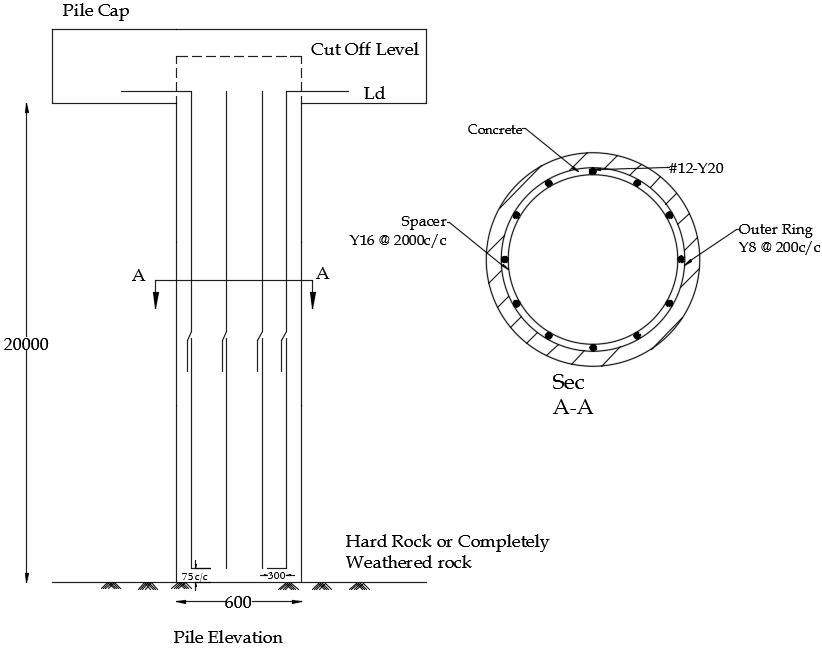

19. Pile Column

Pile columns are deep foundation elements that transfer loads to hard soil or rock layers. They are essential in weak soil conditions, heavy industrial structures, and bridges. Pile columns ensure stability by preventing settlement and distributing loads to firm strata. They are often combined with pile caps to support multi-storey buildings and heavy infrastructure safely.

Features

Pile columns are deep foundation columns that transfer loads to stronger soil or rock layers. They are essential in areas with weak surface soil.

Applications

• Bridges and flyovers
• Heavy industrial structures
• Buildings on soft or reclaimed land

Advantages of Columns in Construction

• Load Transfer: Safely transfers vertical loads from slab/roof to the foundation.
• Structural Stability: Provides resistance against buckling and lateral forces.
• Height and Space Utilization: Enables multi-storey construction.
• Flexibility: Columns can be shaped, sized, and reinforced based on load requirements.

Factors Affecting Column Design

• Material: Concrete, steel, composite.
• Slenderness Ratio: Influences buckling and stability.
• Load Type: Axial, eccentric, or combined loads.
• Environmental Conditions: Seismic zones, wind loads, and soil quality.

Conclusion

Columns are vital structural elements in construction, responsible for maintaining building stability and load transfer. With various types such as rectangular, circular, composite, and spiral columns, engineers can design structures tailored to load, height, aesthetics, and safety requirements. Understanding column types ensures efficient, durable, and safe construction, supporting both low-rise and high-rise structures while meeting modern architectural and structural demands.

FAQ

1. What is a column in construction?

A column is a vertical structural element that transfers loads from beams, slabs, or roofs down to the foundation. It provides stability and strength to buildings, ensuring they can withstand vertical and lateral forces safely. Columns are essential for multi-storey structures, bridges, and industrial buildings.

2. What are the main types of columns used in construction?

There are 19 common types of columns, including rectangular, square, circular, L-shaped, T-shaped, I-shaped, composite, fluted, cluster, pedestal, hollow, short, long, axially loaded, eccentrically loaded, tied, spiral, slender, and pile columns. Each type is chosen based on load, design, aesthetics, and structural requirements.

3. How do I choose the right column for a building?

Choosing a column depends on load requirements, height, slenderness ratio, material, and architectural design. Engineers also consider environmental factors such as wind, seismic activity, and soil strength. For heavy loads, composite or cluster columns may be used, while decorative buildings often feature fluted or circular columns.

4. What is the difference between a short and long column?

A short column has a height less than three times its least width and usually fails by crushing. A long column is slender, with height exceeding 12 times its width, making it prone to buckling. Long columns require lateral support or bracing, while short columns are inherently stiff.

5. What is the purpose of a composite column?

A composite column combines steel and concrete, utilizing concrete’s compressive strength and steel’s tensile strength. This design provides higher load-bearing capacity, ductility, and durability, making composite columns ideal for high-rise buildings, industrial structures, and earthquake-resistant construction.

6. What is the difference between axially and eccentrically loaded columns?

An axially loaded column carries vertical loads along its centerline, minimizing bending stress. An eccentrically loaded column experiences off-center loads, creating both axial compression and bending moments. Eccentric columns require careful reinforcement design to ensure stability and prevent cracking.

7. Why are pile columns important in construction?

Pile columns are deep foundation elements that transfer building loads to strong soil or rock layers. They are essential for construction on weak soil, heavy industrial buildings, or bridges, as they prevent settlement and provide stability for multi-storey structures.
